PN Series Solid Polycarbonate Awning
The Advaning PN Series solid polycarbonate awnings are designed to protect doors and windows from rain, snow, and hail while helping prevent water damage. Featuring a timeless, streamlined design, they enhance any exterior with clean lines and are available with black or white frames and crystal-clear polycarbonate panels.
Available in two sizes and two frame color options, the PN Series combines dependable weather protection, lasting durability, and elegant style for residential and commercial applications.
| Specification | Details |
|---|---|
| Width Options (in.) | 47, 55 |
| Depth (in.) | 31.5 |
| Height (in.) | 8.3 |
| Frame / Bracket Color | Black, White (Injection Mold), Light Grey |
| Polycarbonate Colors | Clear, Light Grey |
| Polycarbonate Thickness | 3mm, 80+% UV Protection (Solid Sheet) |
| Bracket Material | Nylon, Fiberglass-Reinforced |
| Bracket Quantity | 2 |
| Connectable Feature | Yes |
| Assembly Hardware | Stainless Steel Screws |
| Front / Rear Bar & Gutters | 6061-T3 Grade Aluminum |
| Rubber Gaskets / Strips | EPDM Grade |
| Installation Hardware | 304-Grade Stainless Steel Lag Screws |
| Warranty | 1-Year Limited Warranty |
Overview

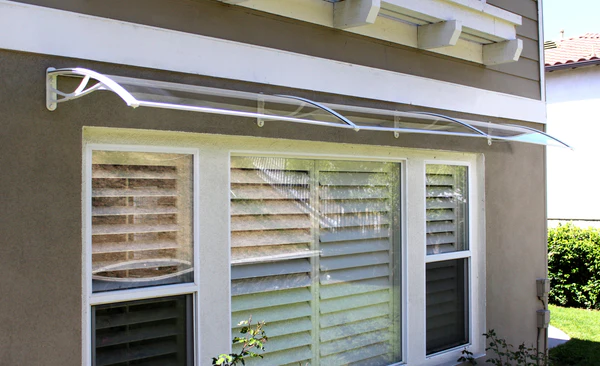

The Advaning PN Series door awnings are designed to channel rain and snow away from doors and windows while maintaining a clean, contemporary look. Their elegant arched profile enhances the appearance of both homes and commercial buildings. Durable, lightweight fiberglass-reinforced nylon brackets securely support the solid polycarbonate panel, providing dependable, long-lasting protection.
The modular PN Series design allows multiple awnings to be connected for customized coverage lengths. Easy to assemble and install, these awnings are an excellent choice for both DIY homeowners and professional installers.
PN Series Solid Polycarbonate Awning Include:
- Solid Polycarbonate Sheet
- Awning Front and Rear Aluminum Bars with Rubber Strip
- Nylon (Fiberglass Reinforced) Brackets
- Bracket screw
- Lag screw and washer set
Features
Nylon Fiberglass Reinforced Bracket
Ultra-lightweight solid mold nylon with fiberglass reinforcement for superior strength and longevity.

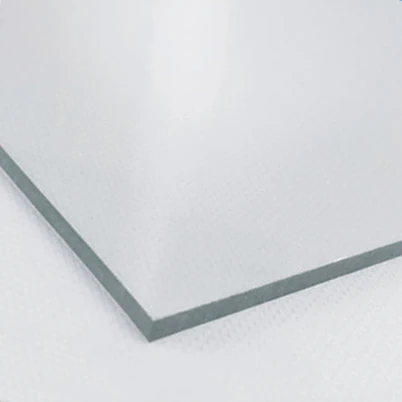

Crystal Clear Solid Polycarbonate Sheet
Industry surpassing polycarbonate sheets provides glass-like clarity with the security of tough outdoor plastics. Shatter-resistant and independently tested for superior strength. Our polycarbonate also provides UV Protection to further guard your doors and windows against excess fading.

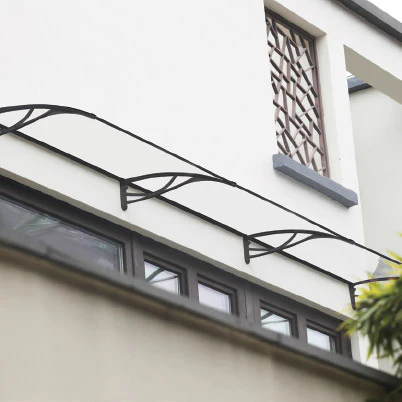

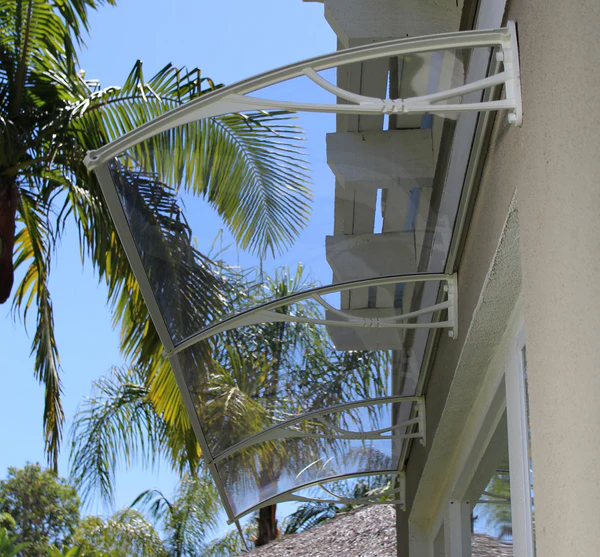

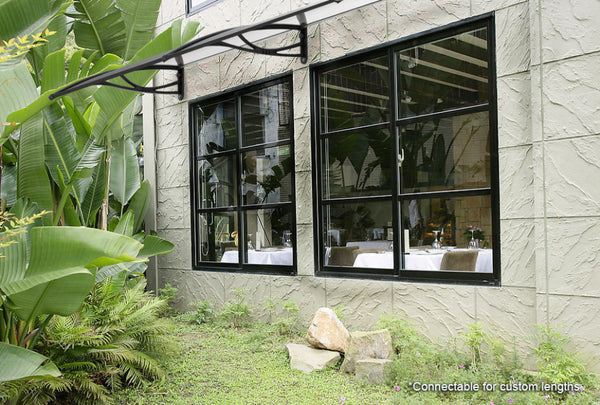

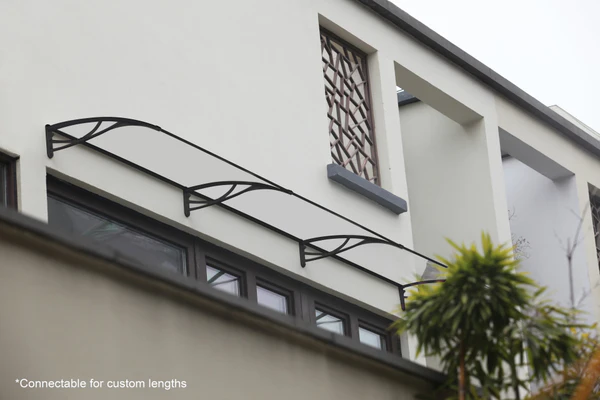

Connectable
Designed for easy and seamless linking of multiple units for extended coverage. The PN Series is the choice solution to protect lengthy and oversized windows and doors.
Size & Color Options

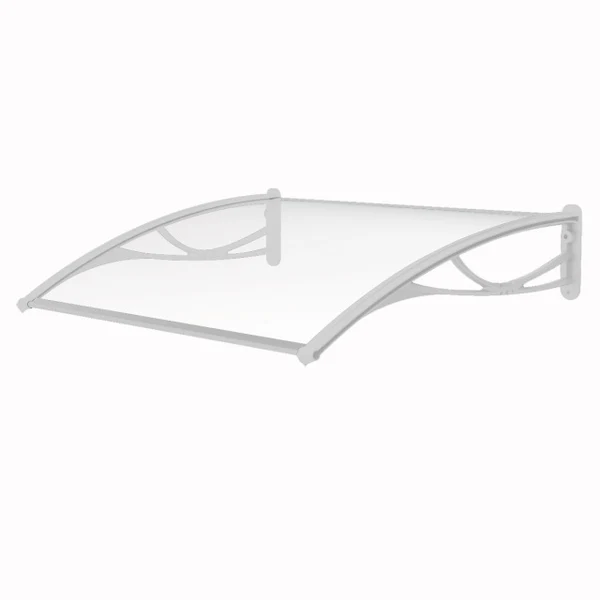

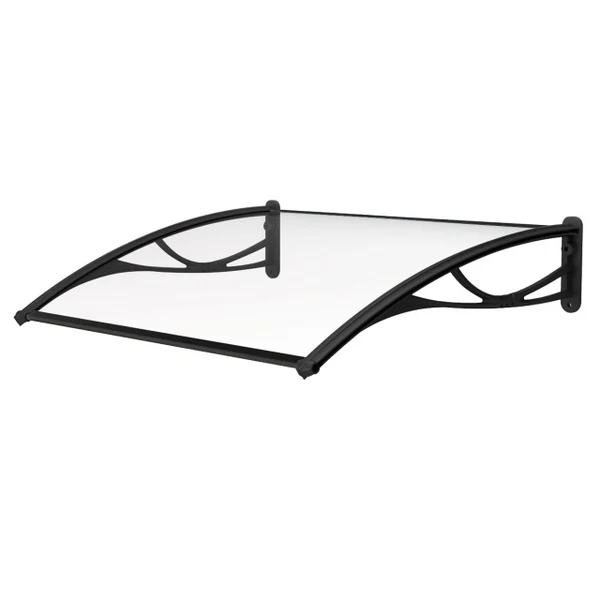

Advaning’s PN Series is available in your choice of White or Black frame/bracket. Completely connectable for even more size coverage options.

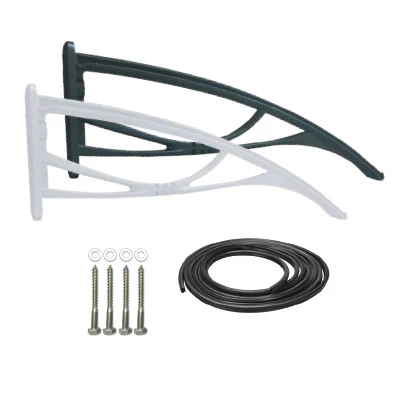

Industrial Standard Parts
Industry grade parts are included ensuring your investment lasts. Included are EPDM rubber strips to keep excess liquid and moisture penetration, 304-grade stainless steel screws for wood installs.
Tested Quality
Advaning polycarbonate awnings (PN and PS Series) have been independently tested by Intertek Labs and ATS Labs.
